AISI 17-4 PH (American Iron and Steel Institute), EN 1.4542 (European standard' or euronorm)
Stainless Steel 17-4PH – 3D Printing Material
Binder Jetting
Material info
About Stainless Steel 17-4PH – 3D Printing Material
Stainless Steel 17-4 PH is highly used in many industrial applications. It is known for its good corrosion resistance and high levels of strength and hardness. It is silver in color and has a granular finish that can be polished.
Stainless Steel is manufactured using Binder Jetting Technology (BJT) from Desktop Metal on a Shop System as-sintered. Unlike our Steel offering that is infused with bronze, this material is a single alloy, 100% Stainless steel.
Color & Finishes
Processed
With a semi-matte finish and rough surface, parts are media blasted after sintering
With a semi-matte finish and rough surface, parts are media blasted after sintering
Technology
- Binder Jetting
Material Properties
Yield Strength (ASTM E8M)
660±40 MPa
Ultimate Tensile Strength (ASTM E8M)
912±35 MPa
Elongation at break (ASTM E8M)
5.9±2 %
Hardness (ASTM E18)
26.4±1 HRC
Density (ASTM B311)
7.5-7.66 g/cc
Description
Material Highlights
Corrosion resistance, Easily machined and polished, High levels of strength and hardness, Magnetic
Applications
Fasteners, Mounting Brackets, Chemical processing, Pump components, Jigs and fixtures
Design Guidelines
Bounding Box
Bounding Box Max
155 × 155 × 76.2 mm
Bounding Box Min
10 × 7.5 × 1.0 mm
The bounding box is a 3D imaginary outline of a box that encloses the smallest area occupied by your model. Your model must be within the minimum and maximum bounding box sizes. If the size of the model is close to the maximum bounding box, then the printing orientation will be restricted.
Walls
Supported Wall Thickness Min
Longest Dimension = Minimum wall thickness3 to 50 mm = 1.0 mm
50 to 80 mm = 1.5 mm
80 to 155 mm = 2.0 mm
Unsupported Wall Thickness Min
Longest Dimension = Minimum wall thickness3 to 50 mm = 1.0 mm
50 to 80 mm = 1.5 mm
80 to 155 mm = 2.0 mm
Wires
Supported Wires Min
Longest dimension = Minimum wire thickness3 to 50 mm = 1.0 mm
50 to 80 mm = 1.5 mm
80 to 155 mm = 2.0 mm
Unsupported Wires Min
Longest dimension = Minimum wire thickness3 to 50 mm = 1.0 mm
50 to 80 mm = 1.5 mm
80 to 155 mm = 2.0 mm
Details
Details Min Embossed
1.0 mm high & wide
Details Min Engraved
1.0 mm deep & wide
Escape Holes
Single Escape Hole Diameter (Min)
5.0 mm
Multiple Escape Hole Diameter (Min)
2.54 mm
A single escape hole at the end of a cavity will not allow material in the corners near the escape hole to fully escape. So we recommend multiple escape holes at both ends of the cavity.
Clearance
Min
0.3 mm
Interlocking & Enclosed Parts
Interlocking
No
Enclosed
No
Accuracy
Accuracy
± 5 %
For example: a product with dimensions of 50 x 50 x 100 mm can be 0.05*100 mm = 5 mm bigger or smaller in any direction.
Related Materials
Single Alloy Stainless Steel 316L (100% Stainless Steel)
Stainless Steel 316L - 3D Printing Material
Application: Manufacturing Heat Exchangers, Medical Tools, Fasteners, Mounting Brackets
Learn More →

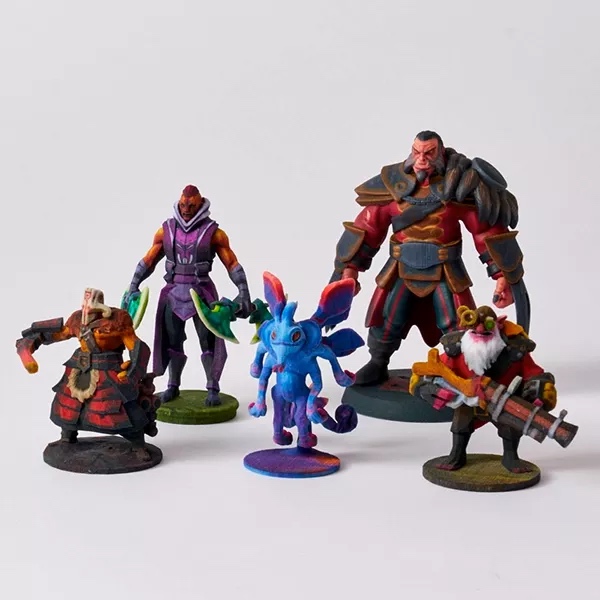

Sandstone- 3D Printing Material
